2025 and 2026, side by side
Switch model years without losing your place and see where maximums or equipment changed.
2025 + 2026 Ford towing guide
Find the Ford that fits what you tow.
Compare Ford trucks and SUVs by model year, powertrain, maximum loaded trailer weight, required equipment, payload impact, and flat-towing eligibility - all in one practical guide.
Configuration controls capability
Engine, cab, wheelbase, axle, drivetrain, trim, hitch, and tow package can all change the rating.
Payload is part of towing
Passengers, cargo, accessories, and tongue or pin weight all use the payload shown on the exact vehicle.
Jump to a model
Start with the vehicle.
Headline ratings are maximums, not promises for every vehicle. Open a model, choose the year, and note the required equipment before shopping inventory.
Pickup trucks
Ford truck towing ratings
Compare maximum loaded trailer weight by powertrain. These model-level maximums require the listed equipment and the right cab, bed, axle, drivetrain, trim, and payload.
F-150
Ford truck
F-150
Maximum shown
13,500 lb.
13,500 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.7L EcoBoost V6 | 8,400 lb. | Properly equipped configuration |
| 3.5L EcoBoost V6 | 13,500 lb. | Tow/Haul Package and Max Tow Axle |
| 3.5L PowerBoost Full Hybrid V6 | 12,400 lb. | Tow/Haul Package and Max Tow Axle |
| 5.0L Ti-VCT V8 | 12,800 lb. | Tow/Haul Package and Max Tow Axle |
| 3.5L High Output EcoBoost V6 | 8,200 lb. | Raptor only |
| 5.2L Supercharged V8 | 8,700 lb. | Raptor R only |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.7L EcoBoost V6 | 8,400 lb. | Properly equipped configuration |
| 3.5L EcoBoost V6 | 13,500 lb. | Tow/Haul Package and Max Tow Axle |
| 3.5L PowerBoost Full Hybrid V6 | 11,200 lb. | Tow/Haul Package and Max Tow Axle |
| 5.0L Ti-VCT V8 | 12,900 lb. | Tow/Haul Package and Max Tow Axle |
| 3.5L High Output EcoBoost V6 | 8,200 lb. | Raptor only |
| 5.2L Supercharged V8 | 8,700 lb. | Raptor R only |
| F-150 Lightning | 10,000 lb. | Extended-range battery and Max Trailer Tow Package |
Configuration note: Without a weight-distribution system, Ford limits trailer weight to 5,000 lb. F-150 fifth-wheel/gooseneck ratings reach 11,700 lb. for 2026 and 11,600 lb. for 2025; Raptor is not recommended for fifth-wheel towing, and most fifth-wheel designs are not compatible with the 5.5-ft. box.
Shop F-150 inventory

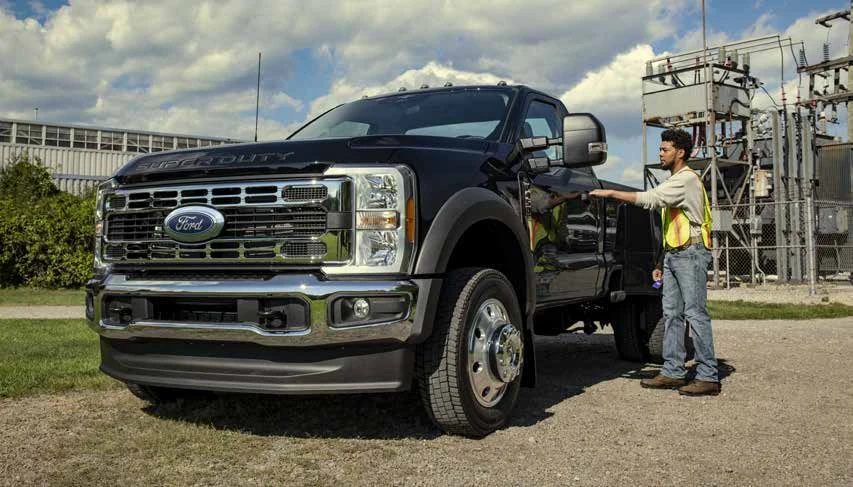

Super Duty
Ford truck
Super Duty
Maximum shown
40,000 lb.
40,000 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 6.8L gas V8 | 18,900 lb. | Heavy-Duty Payload Package and gooseneck |
| 7.3L gas V8 | 22,500 lb. | Gooseneck configuration |
| 6.7L Power Stroke diesel | 38,600 lb. | Gooseneck configuration |
| 6.7L High Output Power Stroke diesel | 40,000 lb. | 40K Gooseneck Tow Package |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 6.8L gas V8 | 18,900 lb. | Heavy-Duty Payload Package and gooseneck |
| 7.3L gas V8 | 23,400 lb. | Properly equipped configuration |
| 6.7L Power Stroke diesel | 38,600 lb. | Gooseneck configuration |
| 6.7L High Output Power Stroke diesel | 40,000 lb. | 40K Gooseneck Tow Package |
Configuration note: The 40,000-lb. headline is a gooseneck rating for a specific F-450 configuration. Conventional, fifth-wheel, and gooseneck ratings differ by F-250/F-350/F-450 model, cab, bed, drivetrain, axle, GVWR, tire, and engine.
Shop Super Duty inventory

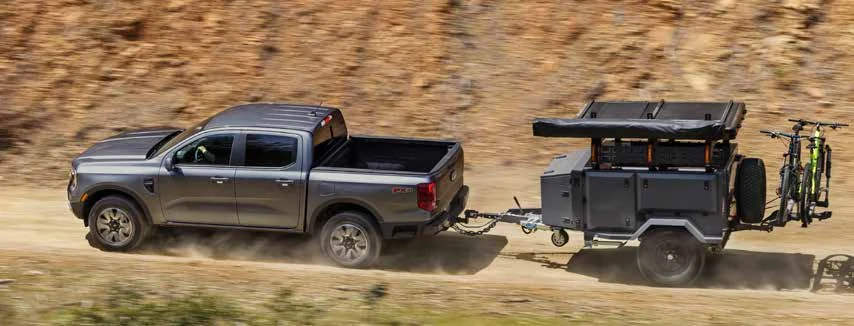

Ranger
Ford truck
Ranger
Maximum shown
7,500 lb.
7,500 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4 | 7,500 lb. | Trailer Tow Package (53R) |
| 2.7L EcoBoost V6 | 7,500 lb. | Trailer Tow Package (53R) |
| 3.0L EcoBoost V6 | 5,510 lb. | Ranger Raptor; tow package standard |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4 | 7,500 lb. | Trailer Tow Package (53R) |
| 2.7L EcoBoost V6 | 7,500 lb. | Trailer Tow Package (53R) |
| 3.0L EcoBoost V6 | 5,510 lb. | Ranger Raptor; tow package standard |
Configuration note: The rear step bumper is limited to 3,500 lb.; the 7,500-lb. rating requires the hitch and Trailer Tow Package. Ford lists 55 sq. ft. of trailer frontal area with the package.
Shop Ranger inventory

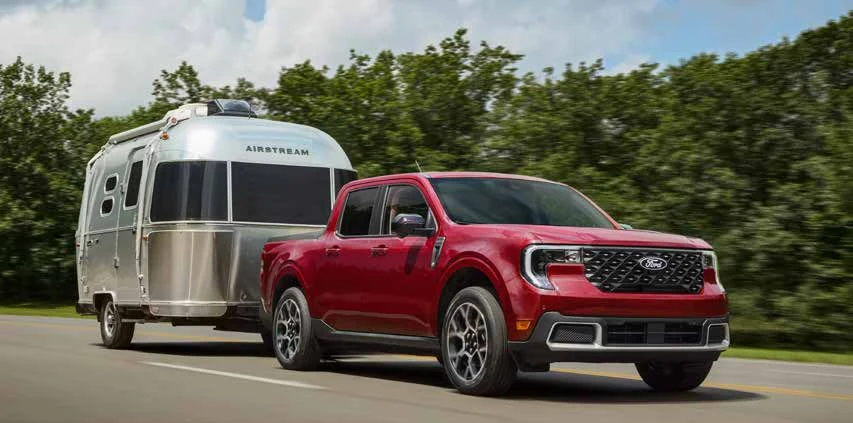

Maverick
Ford truck
Maverick
Maximum shown
4,000 lb.
4,000 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.5L hybrid, standard setup | 2,000 lb. | Properly equipped FWD or AWD |
| 2.5L hybrid AWD | 4,000 lb. | 4K Trailer Tow Package (53Q) |
| 2.0L EcoBoost AWD | 4,000 lb. | 4K Trailer Tow Package (53Q) |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.5L hybrid, standard setup | 2,000 lb. | Properly equipped FWD or AWD |
| 2.5L hybrid AWD | 4,000 lb. | 4K Trailer Tow Package (53Q) |
| 2.0L EcoBoost AWD | 4,000 lb. | 4K Trailer Tow Package (53Q) |
Configuration note: The 4K package includes a Class III hitch, 4-/7-pin connector, trailer brake controller, cooling upgrades, and Tow/Haul mode. Ford lists 40 sq. ft. of trailer frontal area with the package.
Shop Maverick inventorySUVs and crossovers
Ford SUV towing ratings
Start with the model, then verify the exact powertrain, drivetrain, axle, tow package, hitch, and vehicle payload label.
Expedition
Ford SUV
Expedition
Maximum shown
9,600 lb.
9,600 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| Expedition, 4x4, 3.73 axle | 9,600 lb. | Heavy-Duty Trailer Tow; weight-distributing hitch over 7,000 lb. |
| Expedition MAX, 4x4, 3.73 axle | 9,000 lb. | Heavy-Duty Trailer Tow; weight-distributing hitch over 7,000 lb. |
| 3.31 axle configurations | Up to 6,300 lb. | Class IV receiver standard |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| Expedition, 4x4, 3.73 axle | 9,600 lb. | Heavy-Duty Trailer Tow; weight-distributing hitch over 7,000 lb. |
| Expedition MAX, 4x4, 3.73 axle | 9,000 lb. | Heavy-Duty Trailer Tow; weight-distributing hitch over 7,000 lb. |
| 3.31 axle configurations | Up to 6,300 lb. | Class IV receiver standard |
Configuration note: Expedition MAX carries a lower maximum than the shorter-wheelbase Expedition. Trailer frontal-area guidance is 55 sq. ft. without Heavy-Duty Trailer Tow and 60 sq. ft. for properly equipped 4x4 models.
Shop Expedition inventory

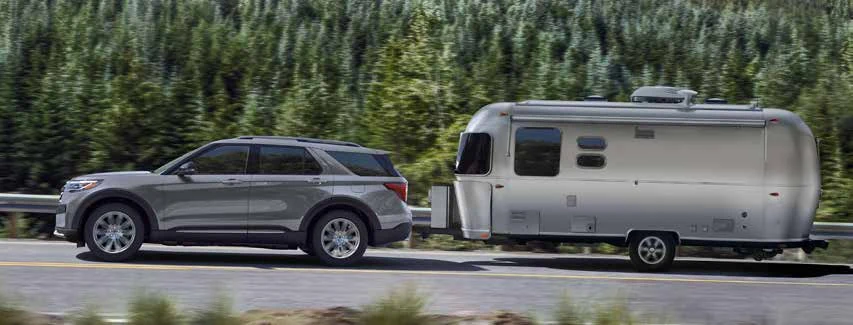

Explorer
Ford SUV
Explorer
Maximum shown
5,000 lb.
5,000 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4, RWD or 4WD | 5,000 lb. | Standard Trailer Tow Package |
| 3.0L EcoBoost V6, RWD or 4WD | 5,000 lb. | Standard Trailer Tow Package |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4, RWD or 4WD | 5,000 lb. | Standard Trailer Tow Package |
| 3.0L EcoBoost V6, RWD or 4WD | 5,000 lb. | Standard Trailer Tow Package |
Configuration note: Ford lists a 500-lb. maximum tongue load and 40 sq. ft. maximum trailer frontal area. A compatible aftermarket brake controller is required if the trailer has electric brakes.
Shop Explorer inventory

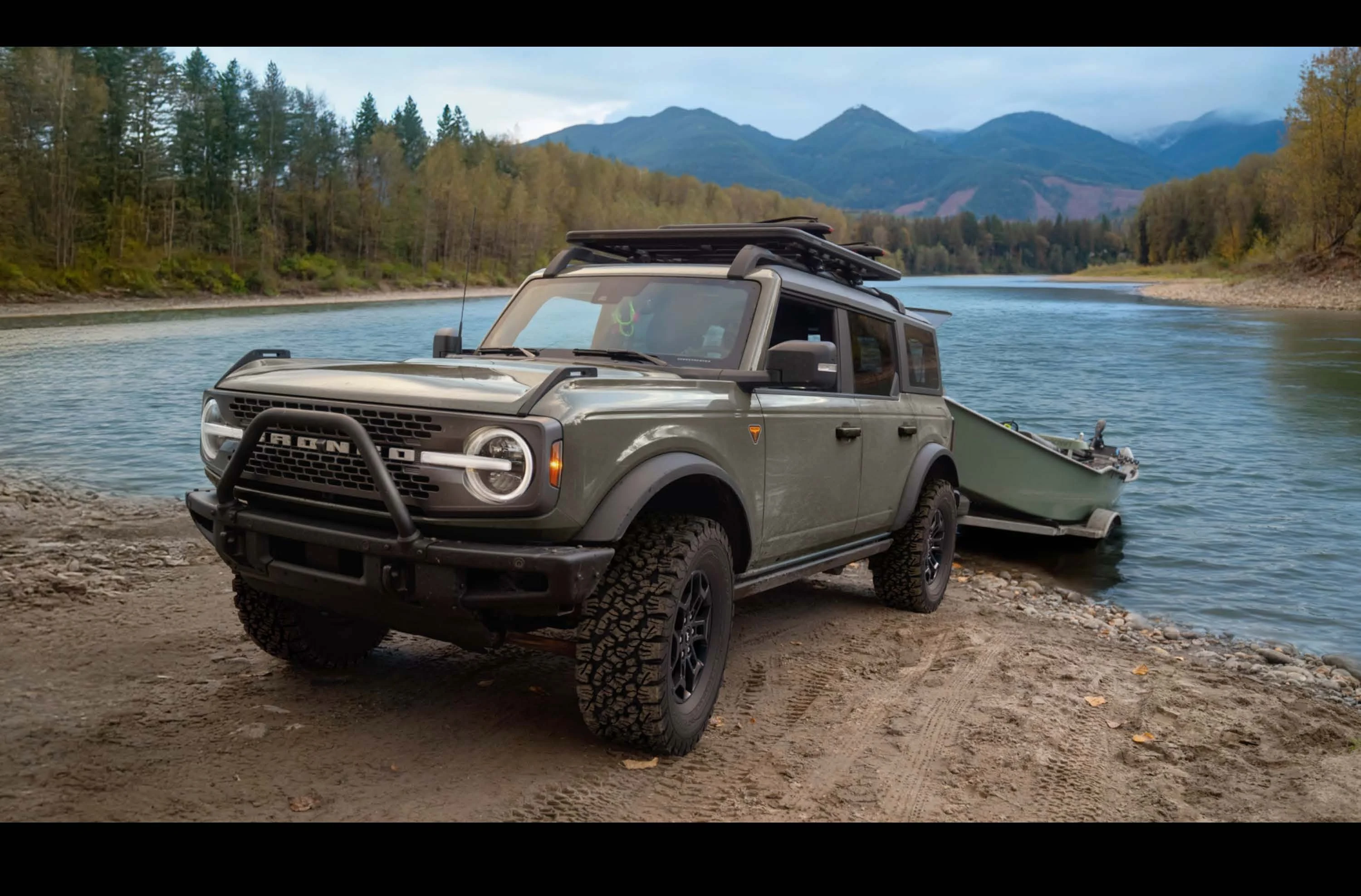

Bronco
Ford SUV
Bronco
Maximum shown
4,500 lb.
4,500 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4, most models | 3,500 lb. | Dealer-installed OEM trailer hitch for trailers over 2,000 lb. |
| 2.7L EcoBoost V6, most models | 3,500 lb. | Dealer-installed OEM trailer hitch for trailers over 2,000 lb. |
| 3.0L EcoBoost V6 | 4,500 lb. | Bronco Raptor; Tow Package 2 standard |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.3L EcoBoost I4, most models | 3,500 lb. | Dealer-installed OEM trailer hitch for trailers over 2,000 lb. |
| 2.7L EcoBoost V6, most models | 3,500 lb. | Dealer-installed OEM trailer hitch for trailers over 2,000 lb. |
| 3.0L EcoBoost V6 | 4,500 lb. | Bronco Raptor; Tow Package 2 standard |
Configuration note: Most Bronco configurations are limited to 3,500 lb. despite engine or axle differences. Ford lists 30 sq. ft. of trailer frontal area for those configurations and 40 sq. ft. for Bronco Raptor.
Shop Bronco inventory

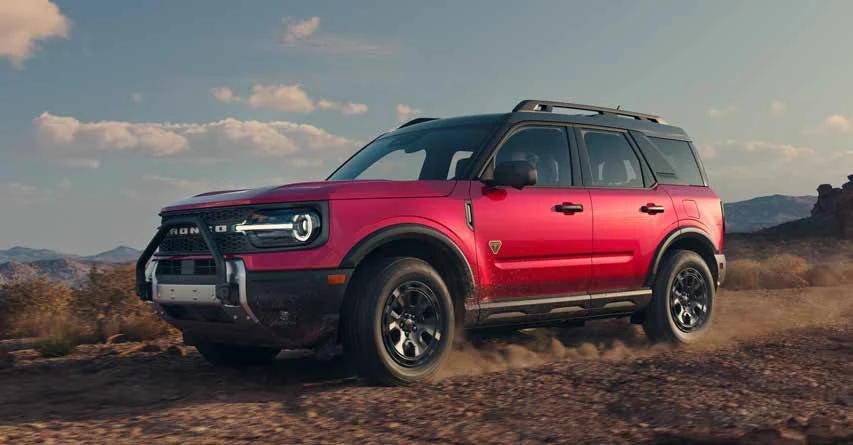

Bronco Sport
Ford SUV
Bronco Sport
Maximum shown
2,700 lb.
2,700 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 1.5L EcoBoost I3 | 2,200 lb. | Class II Trailer Tow Package |
| 2.0L EcoBoost I4 Badlands | 2,700 lb. | Class II Trailer Tow Package |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 1.5L EcoBoost I3 | 2,200 lb. | Class II Trailer Tow Package |
| 2.0L EcoBoost I4 Badlands | 2,700 lb. | Class II Trailer Tow Package |
Configuration note: The tow package is required above 1,500 lb. Ford lists a 220-lb. tongue limit for most models and 270 lb. for the 2.0L Badlands configuration.
Shop Bronco Sport inventory

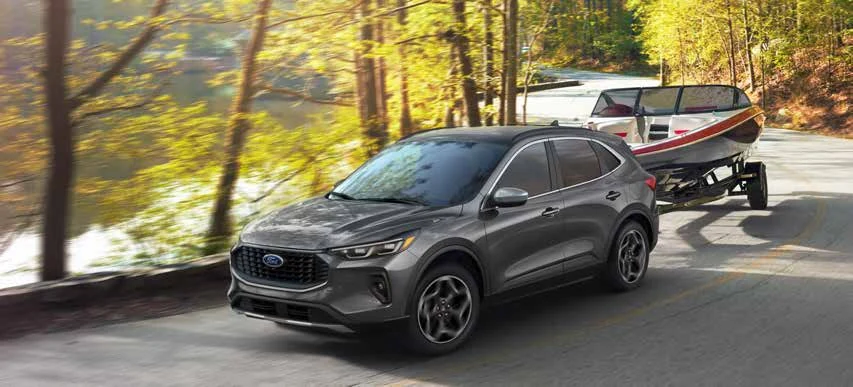

Escape
Ford SUV
Escape
Maximum shown
3,500 lb.
3,500 lb.
2026 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.5L hybrid or plug-in hybrid | 1,500 lb. | Class II Trailer Tow Package on eligible trims |
| 1.5L EcoBoost I3 | 2,000 lb. | Dealer accessory towing equipment |
| 2.0L EcoBoost I4 | 3,500 lb. | Class II Trailer Tow Package (536) |
2025 ratings
| Powertrain / configuration | Maximum loaded trailer | Key requirement |
|---|---|---|
| 2.5L hybrid or plug-in hybrid | 1,500 lb. | Class II Trailer Tow Package on eligible trims |
| 1.5L EcoBoost I3 | 2,000 lb. | Dealer accessory towing equipment |
| 2.0L EcoBoost I4 | 3,500 lb. | Class II Trailer Tow Package (536) |
Configuration note: The 3,500-lb. maximum applies only to the properly equipped 2.0L EcoBoost. The hybrid and plug-in hybrid are limited to 1,500 lb. Ford notes that 2026 Escape is not available for registration in Oregon and certain other states due to emissions certification.
Shop Escape inventory
Payload check
Estimate what the hitch puts on the vehicle.
This planning tool estimates tongue or pin weight and subtracts it, along with people and cargo, from the payload rating you enter. Use the exact vehicle payload label for a meaningful estimate.
- Conventional trailers commonly use 10% for planning.
- Fifth-wheel and gooseneck trailers commonly use 15%.
- Actual loaded tongue or pin weight must be measured.
Behind a motorhome
Four-wheel-down (flat) towing
“Yes” means the configuration appears in Ford’s model-year guide. It is not a universal instruction: each vehicle has its own speed, distance, transfer-case, transmission, battery, and engine-running procedures.
Before towing: Read the exact vehicle Owner’s Manual and Warranty Guide, use a separate functional braking system, and follow the tow-bar and motorhome manufacturers’ limits. Aftermarket flat-tow conversion kits may affect warranty coverage.
| Ford vehicle | Eligible configuration | 2026 | 2025 | Key Ford procedure / restriction |
|---|---|---|---|---|
| Escape Hybrid / Plug-in Hybrid | Automatic | Yes | Yes | 70-mph maximum; select Neutral Tow. Run the engine at the start of each day and at least every six hours, following Ford's shift procedure. |
| Bronco | Automatic or manual | Yes | Yes | Place the transfer case in Neutral Tow and follow every Owner's Manual step. The 2026 automatic listing also carries Ford's periodic engine-start procedure. |
| Expedition / Expedition MAX | 4x4 only | Yes | Yes | Requires a 2-speed transfer case and the transfer-case Neutral Tow procedure. 4x2 models are not approved. |
| Maverick Hybrid | FWD or AWD | Yes | Yes | 70-mph maximum; select Neutral Tow. Run the engine at the start of each day and at least every six hours, following Ford's shift procedure. |
| Ranger | 4x4 only | Yes | Yes | Requires a 2-speed transfer case and the transfer-case Neutral Tow procedure. 4x2 models are not approved. |
| F-150 / F-150 Raptor | 4x4 only | Yes | Yes | Requires a 2-speed transfer case and the transfer-case Neutral Tow procedure. 4x2 models are not approved. |
| F-250 through F-600 Super Duty | 4x4 only | Yes | Yes | Requires a 2-speed transfer case and the transfer-case Neutral Tow procedure. 4x2 models are not approved. |
Not approved for four-wheel-down towing in both guides
Bronco SportEscape gasExplorerExpedition 4x2Maverick gasRanger 4x2F-150 4x2Super Duty 4x2Mustang Mach-ETransit
The 2025 guide also lists F-150 Lightning as not approved. It is not listed in the 2026 guide.
Tow-dolly alternative
Front-wheel-drive choices have limited dolly flexibility.
- FWD Escape and Escape Hybrid are tow-dolly approved in both guides.
- FWD Maverick and Maverick Hybrid are tow-dolly approved in both guides.
- AWD/4WD Ford vehicles cannot be towed with two wheels lifted off the ground.
- The Escape Plug-in Hybrid is listed for FWD tow-dolly use; follow its Owner's Manual and the dolly manufacturer's instructions.
Original Ford sources
Open the complete model-year guide.
The Ford PDFs contain the full cab, wheelbase, axle, GCWR, hitch, frontal-area, commercial vehicle, motorhome, and footnote tables. Relevant sections are pickup trucks on pages 15-28, SUVs on pages 38-42, and towing a Ford behind a motorhome on pages 48-49.
Five limits have to work together
The maximum loaded trailer weight is only one limit. Confirm the exact vehicle's GVWR, rear GAWR, payload label, GCWR, and hitch rating before towing. The lowest applicable limit controls the setup.
Ford calculates these ratings with specific assumptions. Added passengers, cargo, options, accessories, hitch hardware, and trailer tongue or pin weight can reduce the trailer weight the vehicle can safely handle.
Use loaded weight, not an empty-trailer number
Include water, propane, batteries, food, tools, recreational gear, and anything else that travels in the trailer. Ford recommends weighing the fully loaded tow vehicle and trailer before a trip.
- Conventional trailer tongue weight is generally planned around 10% of loaded trailer weight
- Fifth-wheel or gooseneck pin weight is generally planned around 15%
- Do not tow until the vehicle has been driven at least 1,000 miles
- Use a separate functional trailer brake system when required; Ford recommends one for any towed vehicle
- Cross safety chains under the trailer tongue and confirm lights, breakaway equipment, tires, and connections
Verify the truck before you choose
Use the door-jamb Safety Compliance Certification Label, payload label, window sticker, hitch label, and Owner's Manual for the vehicle you are considering. A model-level maximum does not guarantee that every vehicle with that badge carries the same rating.
This page summarizes Ford's 2025 and 2026 RV & Trailer Towing Guides for shopping and planning. It does not replace vehicle-specific labels, the Owner's Manual, trailer instructions, or a professional setup review.
Available at Butler
New Ford tow vehicles available now
These live matches come from Butler Ford's published inventory. Open any vehicle to review its window sticker and ask us to confirm its towing equipment.
Butler Ford
2026 Ford Ranger
XL
$1,875 in factory options2.3L EcoBoost EngineFx4 Off-road Package
- Advertised price
- $39,904
- MSRP
- $39,904
- Manufacturer incentiveiFord Customer Cash: eligibility, residency, expiration, and compatibility with other offers are verified at purchase.
- -$1,000
- Oregon vehicle privilege tax (0.5%)iThis estimate uses the configured 0.5% rate. Oregon vehicle privilege tax is governed by ORS 320.405 through 320.420. Oregon dealers pay the privilege tax and may pass it through to the buyer. Statutory exemptions, including certain vehicles over 26,000 pounds GVWR, still apply.
- +$195
- Dealer document fee
- +$200
- Electronic filing fee
- +$50
- Butler OTD Total
- $39,349
$584/mo planning estimate
Free delivery availableCourtesy delivery within roughly 80 driving miles
Free courtesy delivery from Ashland
Common communities include:
Ashland · Talent · Phoenix · Medford · Jacksonville · Central Point · White City · Eagle Point · Gold Hill · Rogue River · Grants Pass · Shady Cove · Trail · Prospect · Cave Junction · Klamath Falls · Hornbrook · Yreka · Montague · Fort Jones · Weed · Mount Shasta Address and vehicle eligibility are confirmed by Butler Ford.
Butler Ford
2026 Ford Ranger
XL
- Advertised price
- $39,769
- MSRP
- $40,675
- Dealer discount
- -$906
- Manufacturer incentiveiFord Customer Cash: eligibility, residency, expiration, and compatibility with other offers are verified at purchase.
- -$1,000
- Oregon vehicle privilege tax (0.5%)iThis estimate uses the configured 0.5% rate. Oregon vehicle privilege tax is governed by ORS 320.405 through 320.420. Oregon dealers pay the privilege tax and may pass it through to the buyer. Statutory exemptions, including certain vehicles over 26,000 pounds GVWR, still apply.
- +$194
- Dealer document fee
- +$200
- Electronic filing fee
- +$50
- Butler OTD Total
- $39,213
$582/mo planning estimate
Free delivery availableCourtesy delivery within roughly 80 driving miles
Free courtesy delivery from Ashland
Common communities include:
Ashland · Talent · Phoenix · Medford · Jacksonville · Central Point · White City · Eagle Point · Gold Hill · Rogue River · Grants Pass · Shady Cove · Trail · Prospect · Cave Junction · Klamath Falls · Hornbrook · Yreka · Montague · Fort Jones · Weed · Mount Shasta Address and vehicle eligibility are confirmed by Butler Ford.
Butler Ford
2026 Ford Ranger
XL
- Advertised price
- $39,320
- MSRP
- $40,195
- Dealer discount
- -$875
- Manufacturer incentiveiFord Customer Cash: eligibility, residency, expiration, and compatibility with other offers are verified at purchase.
- -$1,000
- Oregon vehicle privilege tax (0.5%)iThis estimate uses the configured 0.5% rate. Oregon vehicle privilege tax is governed by ORS 320.405 through 320.420. Oregon dealers pay the privilege tax and may pass it through to the buyer. Statutory exemptions, including certain vehicles over 26,000 pounds GVWR, still apply.
- +$192
- Dealer document fee
- +$200
- Electronic filing fee
- +$50
- Butler OTD Total
- $38,762
$574/mo planning estimate
Free delivery availableCourtesy delivery within roughly 80 driving miles
Free courtesy delivery from Ashland
Common communities include:
Ashland · Talent · Phoenix · Medford · Jacksonville · Central Point · White City · Eagle Point · Gold Hill · Rogue River · Grants Pass · Shady Cove · Trail · Prospect · Cave Junction · Klamath Falls · Hornbrook · Yreka · Montague · Fort Jones · Weed · Mount Shasta Address and vehicle eligibility are confirmed by Butler Ford.
Butler Ford
2026 Ford Ranger
XL
- Advertised price
- $40,237
- MSRP
- $41,175
- Dealer discount
- -$938
- Manufacturer incentiveiFord Customer Cash: eligibility, residency, expiration, and compatibility with other offers are verified at purchase.
- -$1,000
- Oregon vehicle privilege tax (0.5%)iThis estimate uses the configured 0.5% rate. Oregon vehicle privilege tax is governed by ORS 320.405 through 320.420. Oregon dealers pay the privilege tax and may pass it through to the buyer. Statutory exemptions, including certain vehicles over 26,000 pounds GVWR, still apply.
- +$196
- Dealer document fee
- +$200
- Electronic filing fee
- +$50
- Butler OTD Total
- $39,683
$590/mo planning estimate
Free delivery availableCourtesy delivery within roughly 80 driving miles
Free courtesy delivery from Ashland
Common communities include:
Ashland · Talent · Phoenix · Medford · Jacksonville · Central Point · White City · Eagle Point · Gold Hill · Rogue River · Grants Pass · Shady Cove · Trail · Prospect · Cave Junction · Klamath Falls · Hornbrook · Yreka · Montague · Fort Jones · Weed · Mount Shasta Address and vehicle eligibility are confirmed by Butler Ford.Build the right combination
Bring the trailer details. We will help confirm the vehicle.
Tell Butler Ford the loaded trailer weight, expected tongue or pin weight, passengers, cargo, and how you plan to tow. We can help narrow the current inventory and verify the equipment on the truck you choose.
